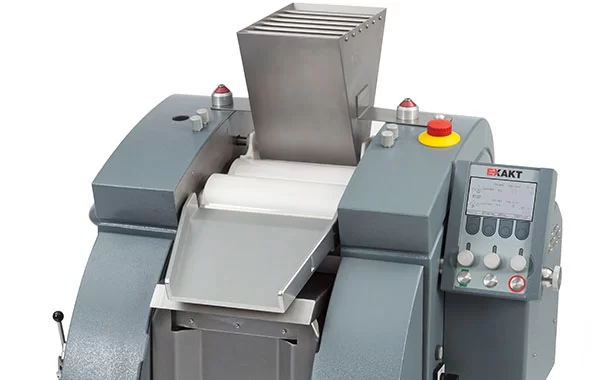

EXAKT 120E -250 Three Roll Mill

Highlights

Get consistently excellent results for particle fineness down to 1 μm.

  • Achievable fineness of less than 1 μm
  • Gap or power mode optionally selectable per gap
  • One-pass calibration – automatic adjustment of the spacing and parallelism of the rollers
  • Electronic display of all operating parameters
  • DataLog – documentation of processing parameters
  • Throughput up to 14 l/h with a gap width of 5 μm
  • Roller temperature control for optimum process control
  • Safe working – overload protection, cleaning, and reverse mode
  • Scraper knife angle adjustable

Performance

The EXAKT 120E provides higher productivity and more power with the same precision as the 80E Plus. This makes it the ideal equipment for a scale-up if higher production volumes are required.  This mill has proven its worth wherever maximum reproducibility and control are required. This model is found in laboratory and production environments.

Safety

  • Achievable fineness of less than 1 μm
  • Gap or power mode optionally selectable per gap
  • One-pass calibration – automatic adjustment of the spacing and parallelism of the rollers
  • Electronic display of all operating parameters
  • DataLog – documentation of processing parameters
  • Throughput up to 14 l/h with a gap width of 5 μm
  • Roller temperature control for optimum process control
  • Safe working – overload protection, cleaning, and reverse mode
  • Scraper knife angle adjustable

Applications

  • Colors: Inks, Coatings,Paints
  • Electronics: Flux, Metal or Carbon Pastes
  • Adhesives: Conductive, Filled, Underfills
  • Cosmetics: Lipsticks, Eyeliner, Makeup
  • Dental: Gels, Pastes, Restorative Materials
  • Nano Technologies: Graphene, CNT, Ceramics
  • Food: Chocolate, Nut Pastes

Roller Materials & Coatings

For optimum results, we offer a range of roller materials for your three roll mill. Our experts can help you chose which material is best for your application.

  • Aluminum oxide
  • Hard chromium plated
  • Silicon carbide
  • Tungsten carbide plated
  • Super finish – aluminum oxide

Optional Equipment

  • Level control kit
  • Production kit
  • DataLog
  • Additional stop switches
  • Nip guard
  • Hopper – stainless steel (comes standard)
  • Hopper – PFA coated
  • Nip guard PFA coated
  • Solvent dispenser
  • Scraper constriction
  • Polished cover surface
  • Adapter for ceramic knife

Specifications

  • Throughput (liters/hour): 30
  • Roller diameter (mm): 120
  • Roller width (mm):  250
  • Roller speed ratio: 9:3:1
  • Max. usable working width (mm): 205
  • Min. gap ( ): 5 to 0
  • Max. gap (): 220
  • Power (kW): 3×400 V 50 Hz
  • Min speed (rpm): 30
  • Max. speed (rpm): 600
  • Force mode: standard
